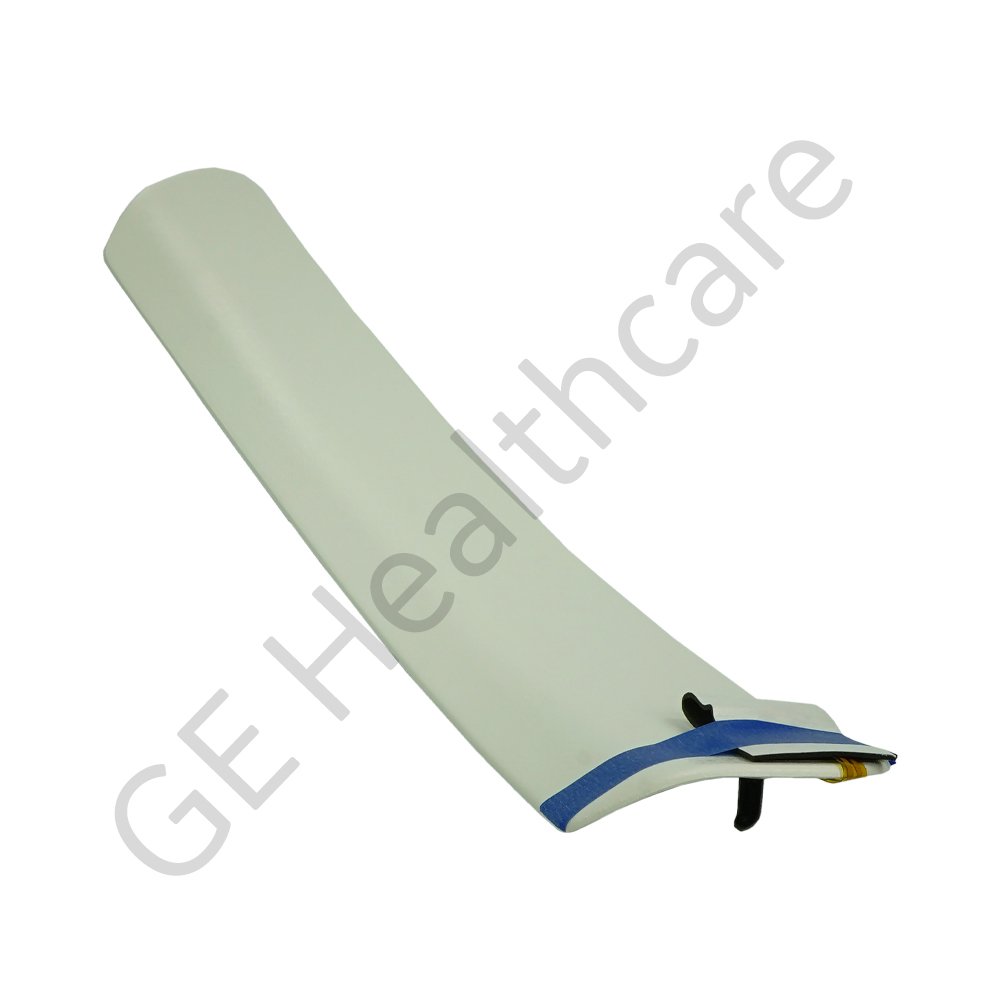

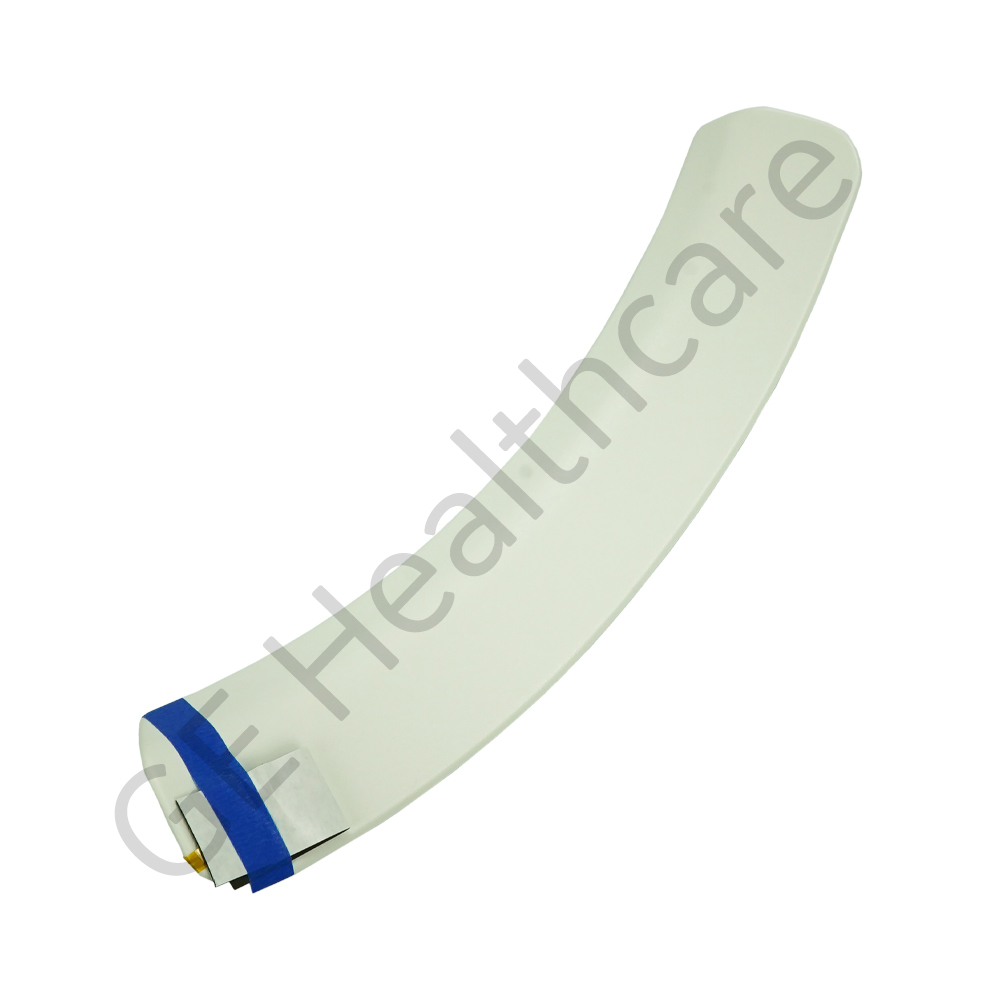

Patient Sensor, Size - Small
| 2277405 | |
| Computed Tomography (CT) | |
| GE HealthCare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Good Dimensional Stability
- Thermoformed Polycarbonate Material
- M4 Size Mounts
- Long Service Life
Product Overview
This small size patient sensor is designed to stop when a patient comes in contact with this sensor mounted on the gantry cover. This sensor stops the gantry's tilt motion when a force of 40 lbs or 10 PSI is applied on it. The cover switch is constructed with a 20k ohms resistor that is attached to one layer of the switch, which can be read when the switch is not activated. When the switch gets activated, it contacts the lower layer and a resistance value of no greater than 100 ohms is read. The cover is made up of thermoformed polycarbonate and has an even and scratch free surface. It comes with an easy to install 2 Position female connector for quick installation. This switch cover is used with Lightspeed RT, Lightspeed Pro 16, Lightspeed 16, Lightspeed Ultra, Hispeed Qxi, Lightspeed Plus, and Lightspeed Qxi CT systems.
