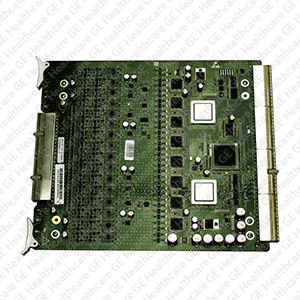

DTRX64 II Assembly 5252321-2U
| 5252321-2U | |
| Ultrasound | |
| Other Ultrasound | |
| GE HealthCare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Provides Strong Transmit Bursts
- 64 channels of analog and digital signal conditioning circuit
- Compact Size
- Reliable performance
Product Overview
This DTRX64 II Assembly is used Analog and Digital Signal Processing. It has 64 channels of analog and digital signal conditioning circuits that have the ability to transmit a high voltage pulse, to receive and amplify the echo-backed small signals from transducer through an Interface board. Each channel has a low-noise and active input termination pre-amplifier (LNA), voltage controlled amplifier (VGA), Low pass filter (AAF) and an analog to digital converter (ADC) in its receive path, and a dual-TX-driver and TR switch in its transmit path. A Transmit/Receiver Switch (T/R Switch) is a diode configuration that allows a pulser to drive the transducer, and protects the receive preamp from large negative and positive voltages produced by the transmitter. The assembly, which includes MLB64 II and DTD64 circuit boards, can be used with Logiq P6 Ultrasound systems. 5252321-2U
