Cable, Thermistor to Common Fan Controller
| 5127088 | |
| Computed Tomography (CT) | |
| GE HealthCare | Outright |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Cable from Thermistor to Common Fan Controller
- Gold Plated Contact Pins
- With Heat Shrink Tube Protection
- 24 AWG Hook-up wires
Product Overview

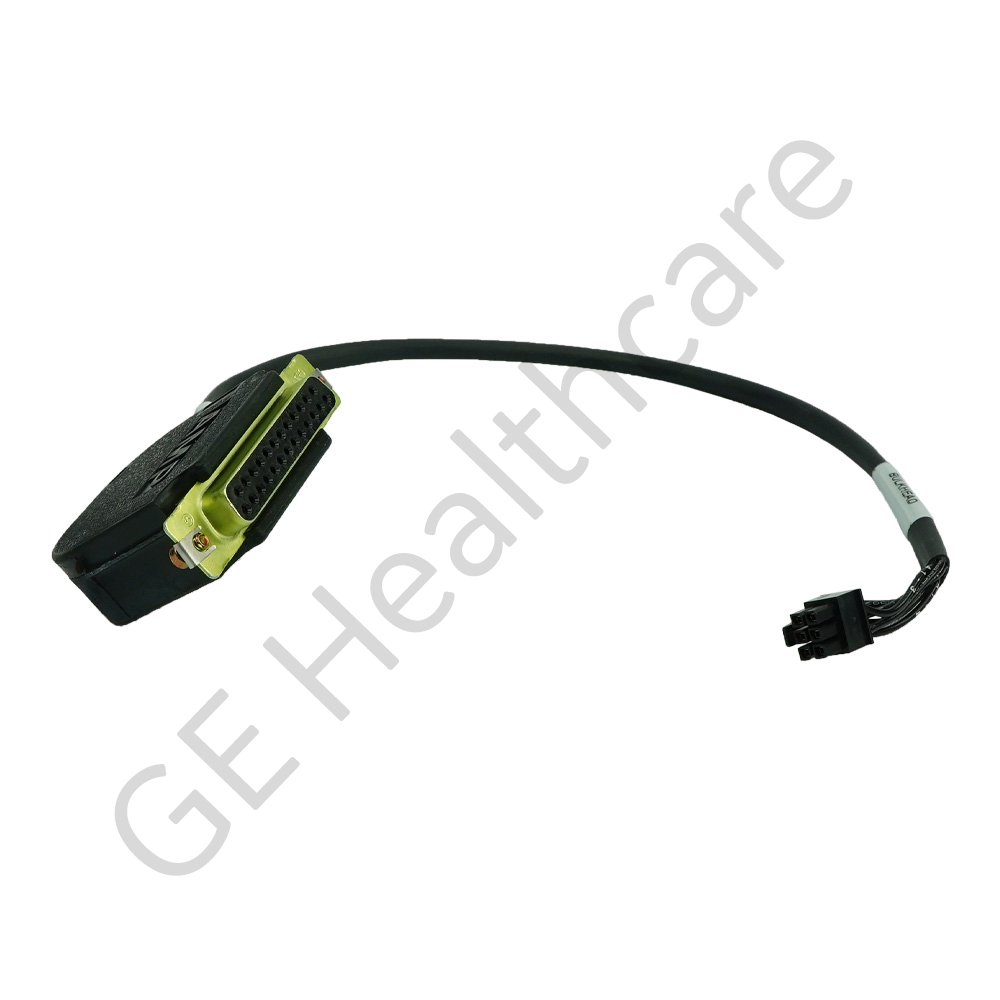

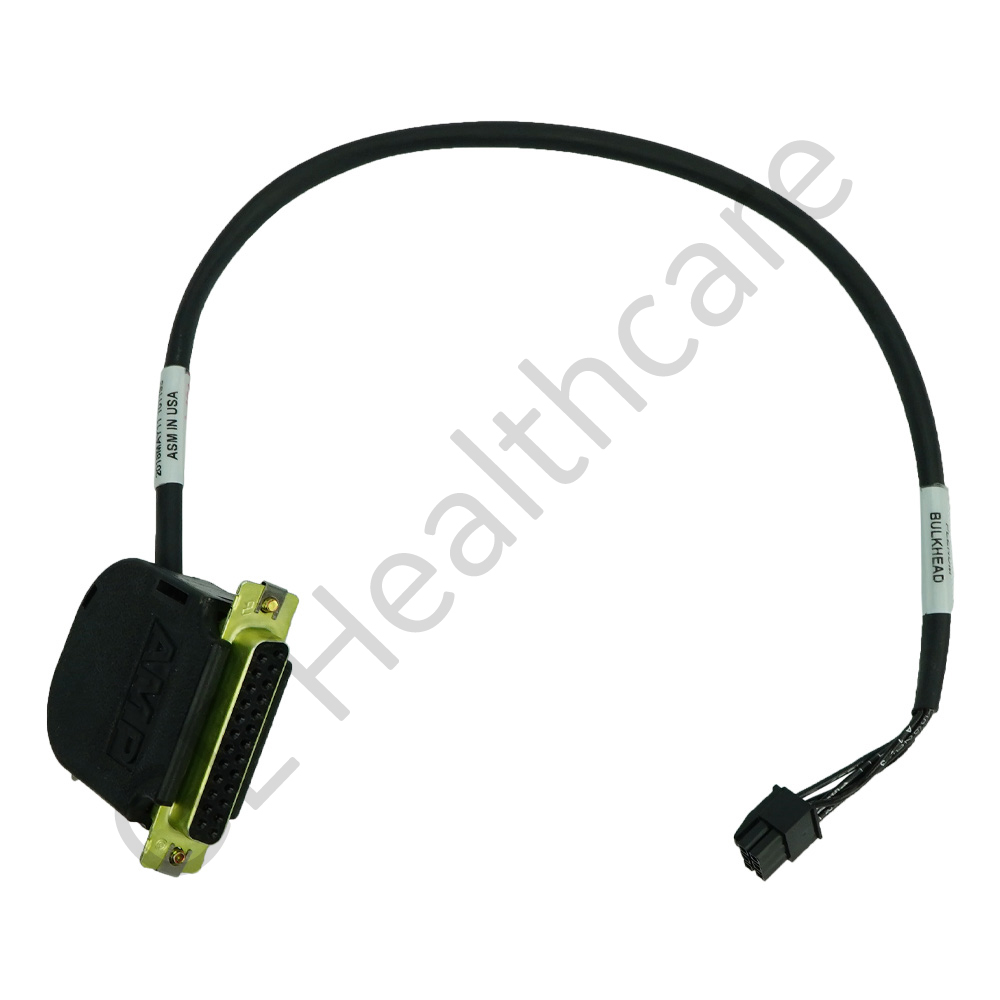

This Cable assembly is used to make a connection between the thermistor to common fan controller. This 375 mm long cable assembly comprises of a six position connector at end (to connect with the Fan Controller) end and a twenty five position connector at the other end (to connect with the thermistor). This cable has six numbers of stranded, hook-up wires. The connection between the connector pin position is as follows: A1-6 to B1-16, A1-3 to B1-3, A1-5 to B1-2, A1-2 to B1-15, A1-4 to B1-1 and A1-1 to B1-14. Heat shrink tube is used to insulate the wires, providing abrasion resistance and environmental protection. This cable assembly is compatible for use in the VCT Plenum assembly of GE's Computed Tomography (CT) Systems. This product will be shipped with proper packaging with adequate protection during transit.
